Aryo Cloud Platform
Intelligent Environmental Monitoring Management

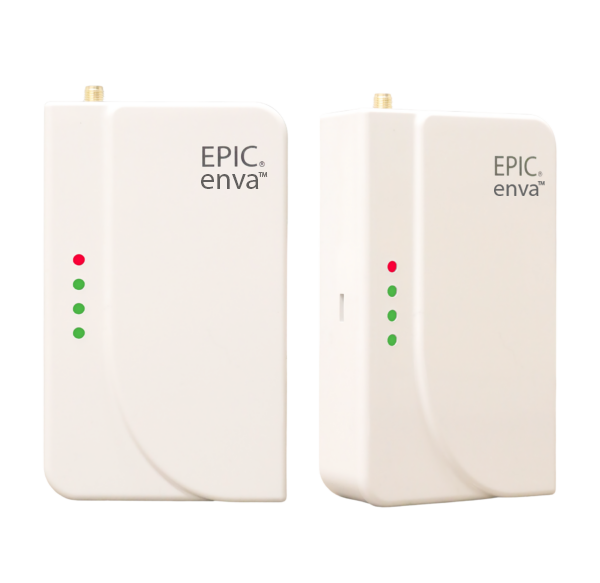

enva™ Specifications
- Connectivity: LTE-CAT M1, 5G Ready
- Monitoring Capacity: 4 programmable input zones
- Control Capability: 2 programmable output PGMs
- Power Requirements:
- Input voltage: 9 to 14 VDC
- Standby current: 35 mA
- Peak current: 87 mA
- Operating temperature: 32°F to 120°F (0°C to 48.9°C)
- Humidity: up to 86%
- Dimensions: 120mm x 70mm x 26.7mm
Monitoring Applications
Water Monitoring
Climate
Control
Air Quality Management
Industrial Systems
Power
Systems
- Water Valve Monitoring
- Water Leak Monitoring
- Water Level Monitoring
- Sump pump
- Sprinkler
- Temperature fluctuations
- Humidity levels
- Moisture detection
- Stability for sensitive equipment
- CO and CO2 levels
- VOC detection
- Oxygen monitoring
- Regulatory compliance verification
- Vibration monitoring
- Light intensity supervision
- Ambient noise level tracking
- Equipment health monitoring
- Battery level supervision
- Power status verification
- Backup system monitoring
- Outage detection and alerts
How Aryo Cloud and enva™ Work?
Enva™ builds a cohesive and integrated monitoring environment:
- Connection: Enva connects to environmental sensors and systems via programmable inputs
- Supervision: The device continuously monitors signals from connected systems
- Transmission: Data is securely transmitted via LTE to Aryo Cloud
- Processing: Aryo Cloud analyzes incoming data for anomalies or threshold violations
- Reporting: Comprehensive data is available for analysis and documentation
- Alerting: Instant notifications are sent when conditions require attention
- Control: Remote commands can be issued through programmable outputs
